Slide Racks
Products
List
| Product | Name | Inches | Metric | Stock Id | description | quantity | |
 |
.366" slides | .366" x .040" x 1.6" | 9.3mm x 1.2mm x 40.6mm | TPC-150 | Static dissipative, 150 count package for slides .040” thick. Length 1.6” fits using ribbed lid as shown in the cross section below. Using deeper lids or a flat you can hold varying lengths. We can customize this basic tray for your specific requirement. |
150 | https://tempobk.techzee.in/assets/pdf/TPC_150_Base_Lid.PDF |
 |

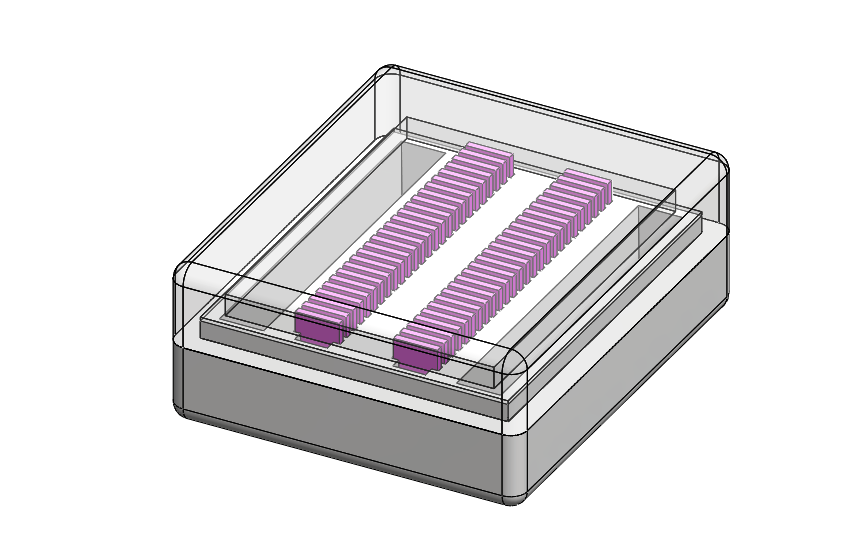

.50" Square or Round | .50" x .50" x .080" | 12.7 x 12.7 x 2 | 52S-0500 | This 52 count box is Static Dissipative. It will hold parts .5” OD x .080” thick, with lid shown. Using a deeper lid, you can hold parts up to .750” x .5”. Call for samples and assistance. |
52 | https://tempobk.techzee.in/assets/pdf/_52S-0500.PDF |
|

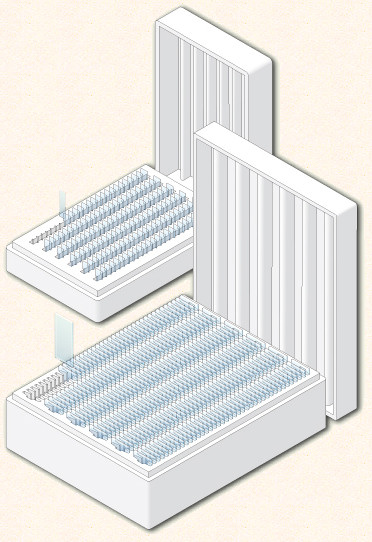

1.0" Slide Rack | 1" x 3" x .1" with ribbed lid | 25.4 mm x 76mm x 2.8mm | #2 x 6 | Static dissipative rack for 1” wide slides. 3” length fits using deep lid shown in cross section. Stackaable for slides not exceeding 2.5” |
240 count | https://tempobk.techzee.in/assets/pdf/products/thin-rectangular components/2x6.pdf |
 |
1.0" x 1.0" x .080" | 1.0" x 1.0" x .080" | 25.4 x 25.4 x 2mm | #52S-1000 | Static Dissipative box for slides sized 1.0” x 1.00” x .080”. |
52 | https://tempobk.techzee.in/assets/pdf/52S-1000.PDF |
 |
1.100" x 1.100" x .080" | 1.100" x 1.100" x .080" | 27.9mm x 27.9mm x 2mm | #50S-1100 | Static Dissipative box for slides sized 1.100” x 1.100” square .080”. |
50 | https://tempobk.techzee.in/assets/pdf/50S-1100.PDF |
 |
1.77" x .88" x 0.30" | 1.77" x .88" x 0.30" | 45mm x 22.4mm x .6mm | 20S-1762 | Static Dissipative box for slides sized 1.77” long by .88”. |
20 | https://tempobk.techzee.in/assets/pdf/products/thin-rectangular components/20s-1762_box.pdf |
 |
1.89" x .370" x .08" | 1.89" x .370" x .08" | 48mm x 10.25mm x 2mm | 25S-1890 | Static Dissipative box for slides sized 1.89” long by .370”. |
25 | https://tempobk.techzee.in/assets/pdf/products/thin-rectangular components/20s-1762_box.pdf |
 |

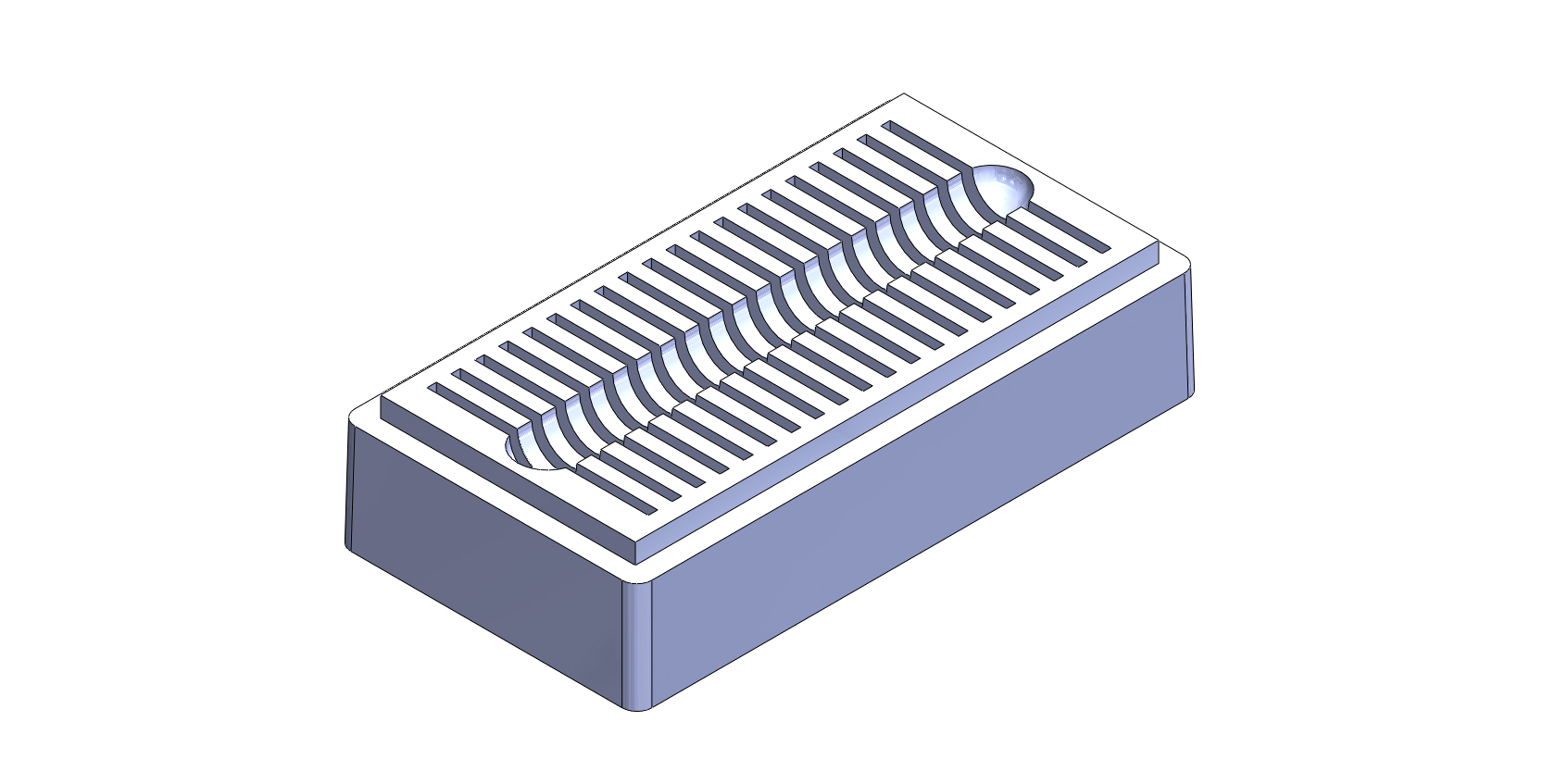

2.78" x 1.25" x .125" | 2.78" x 1.25" x .125" | 70.6mm x 31.8mm x 3mm | 20S-2780 | Static Dissipative box for slides sized 2.78” long by 1.25”. |
20 | https://tempobk.techzee.in/assets/pdf/products/thin-rectangular components/20s-2780.pdf |
 |
3.0" Slide Pocket Pack | 3in x 1in x .040in | 77mm x 25.4mm x 1mm | 25S-3000 | This 25 count box is Static Dissipative. It will hold parts 77mm wide x 25.4mm x 1mm thick and fits in your coat pocket. The flat lid allows for labelling of content inside. Using a flat lid, you can hold parts 25.4mm tall. By using deeper lids, you can hold taller parts, see examples shown in Image #2. Call for samples and assistance. |
25 | https://tempobk.techzee.in/assets/pdf/25S-3000.PDF |
